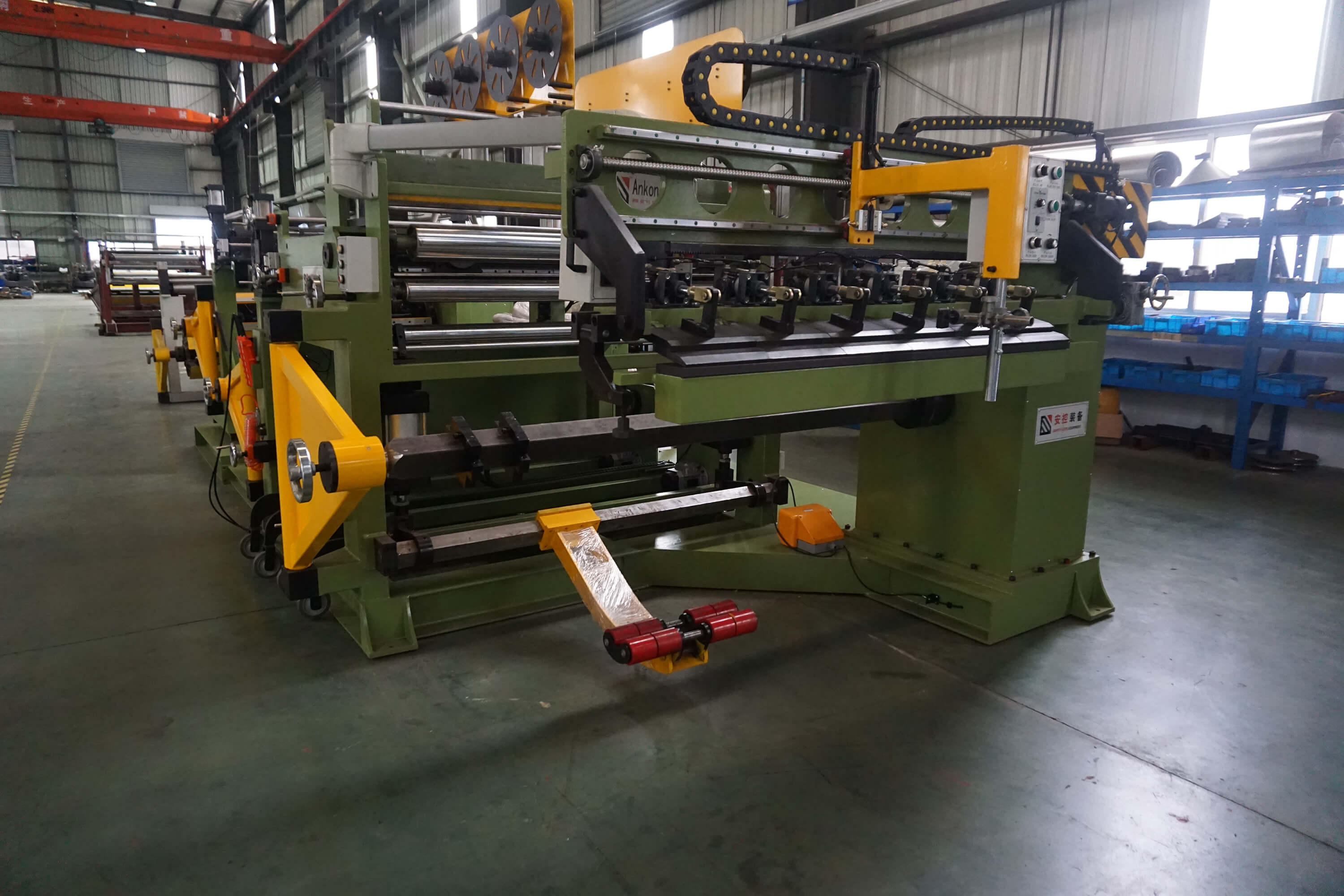

Foil winding machine

Foil winding machine

Foil winding machine

Application

This equipment is mainly used in all kinds of foil winding in transformer and reactor. Welding method have TIG welding and cold pressure welding .

Features:

1. Adopting motor initiative supplying tension advanced method, stable tension, there is stable tension in foil winding, stopping and foil returning. It can avoid loosen situation when the tension lost in winding

2. Winding speed reducer is turbine shaft reducer, it can keep main shaft auto - locked whenever power on or power off status

3.Correction system using photoelectric analog sensors, it is not meeting with foil edge, both thick and thin foil are accepted .

4. Foil tension, layer insulation tension, coil parameters, winding status and other data, all of them can be set and showed on screen, easy for operating, accurately and intuitively

5.Equipment is controlled by PLC and touch screen, less fault of whole machine, no friction noisy, stable working, high working efficiency.

Equipment composition

1. Main machine

2. Foil belt decoiling device

3. Foil feeding device

4. Layer decoiling device

5. Automatic welding device

6. Foil burr remove device

7. Winding pressing roller device

8. Foil material clean device

9. Foil belt auto- correction device

10. Foil belt shearing machine

11. End insulation device

12. TIG auto- correction device

13. TIG machine cold water box

14. Electric control system

Technical Parameters ( For transformer )

Code SH-600 SH-800 SH-1100 SH-1400

Coil outer diameter 150-750mm 150-850mm 200-1000mm 200-1000mm

Foil width 100-600mm 150—800mm 200-1100mm 300-1400mm

Foil layers Single or double

Foil thickness Cu:0.3-2.5mm

Al: 0.5-3.0mm

Winding speed 0 - 3 0 r min 0 - 3 0 r min 0 - 2 0 r / min 0 - 2 0 r / min

Max tension of foil 6000N 8000N 10000N 14000N

Welding speed 0 - 0 . 5 m / min

Correction precision ±0.5mm

Welding method TIG or cold pressure welding
