3D Transformer wound core machine

Automatic 3D wound core winding machine

Automatic 3D wound core winding machine

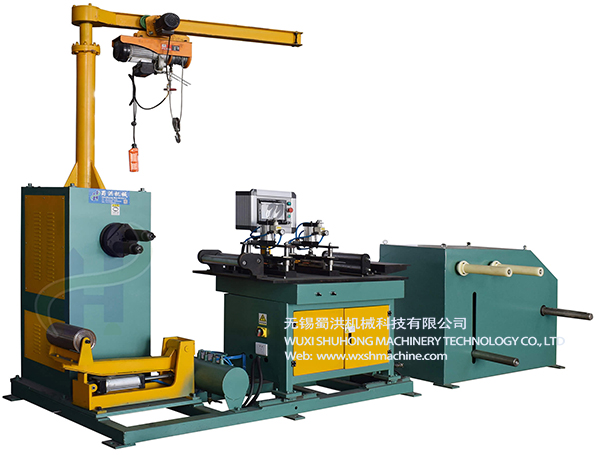

Automatic three-dimensional wound core winding machine


1.Apply to closed type wound core

2.Function: the machine could use for flat single phase, flat three-phase and three-dimensional wound core.

3.Widely use, it could meet a variety of cross section

4.Adopt servo motor, PLC control system and touch screen.

5.It has functions like: automatic resetting, automatic shutdown, strip parameter setting and real-time display.

6.It has manual and automatic pressure regulating device, easy to operate.

7.The wire guided machine adopts high precision ball screw, and precision guide to ensure smooth operation, low noise, and long lifetime.

Technical Parameters

Code: SHJR-1200

Maximum core outer diameter: 300MM

Maximum gyration diameter: R600MMadd clamping roller

R800MMno clamping roller

Core winding speed: 0-60r/min

Total Power: 7.5KW

Speed adjusting way: frequency conversion stepless speed adjust

Control system: PLC, touch screen
