3D Transformer wound core machine

3D wound core transformer coil winding machine

3D wound core transformer coil winding machine

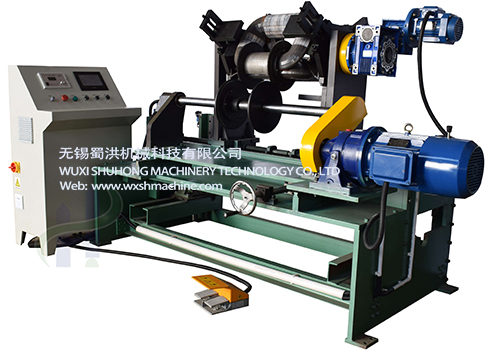

Three-dimensional wound core coil winding machine-1

Features:

1. Dedicated for three-dimensional triangle wound core winding machine

2. Positioning mode: inner positioning, running smoothly, low noise, safe and reliable

3. The machine adopts electric lifting mode to adjust the core position, easy and fast

4. PLC control system, touch screen, encoder counting, automatic shutdown, memory and learning function

5. Be equipped with a inner top device, convenient and efficiency to install the core.

Technical Parameters

Code: SHRX-1

Suitable transformer capacity: 30~1250kVA

Winding method: horizontal type

Up and down distance: 200MM

Front and back max distance: 250MM

Drive gear revolving speed: 0-300r/min

Control system: PLC, touch screen

Three-dimensional wound core coil winding machine-2

Features:

1. Dedicated for three-dimensional triangle wound core winding machine

2. Positioning mode: inner positioning, running smoothly, low noise, safe and reliable

3. PLC control system, touch screen, encoder counting, automatic shutdown, memory and learning function

4. Be equipped with a inner top device, convenient and efficiency to install the core.

Technical Parameters

Code: SHRX-2

Suitable transformer capacity: 30-630KVA

Winding method: horizontal type

Front and back max distance: 500MM

Drive gear revolving speed: 0-300r/min

Control system: PLC, touch screen
