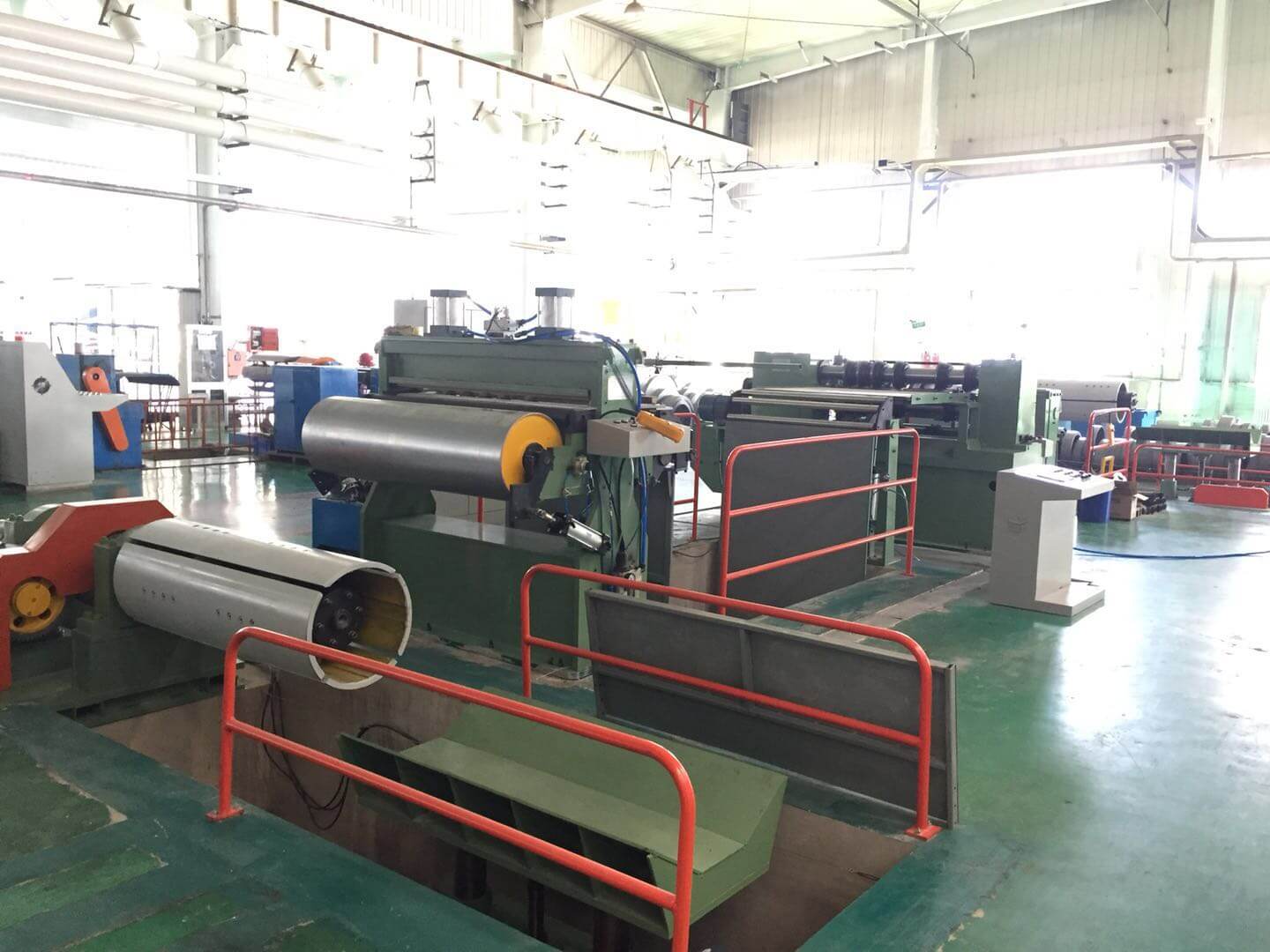

Silicon Plate CNC Slitting Line
Application
This equipment is dedicated machine for silicon plate coil cutting to length. It is suitable for silicon plate coil slitting in transformer, motor, current transformer, etc.
Features:
1. All line adopts electric, hydraulic, pneumatic control. It is easy to operate and has high production efficiency.
2. Adopting PLC controller. The speed of the whole line is synchronous and the machine runs stably.
3. Adopting high rigidity and high precision slitting machine and winding machine to assure the slitting quality.
4. Uncoiling, slitting and winding speed matching automatically. all line works automatically
Equipment composition
1. Decoiler
2. Decoiling buffering rack
3. Slitting guide rack
4. Rolling shearing machine
5. Buffering device
6. Automatic roll up and swing lever
7. Tension table
8. Recoiler
Technical Parameters
Code SH-1000 SH-1250
Material roll inner 500mm 500mm
Material roll width 1000mm 1250mm
Material roll weight 5T 8T
Material thickness 0.20-0.5mm 0.20-0.5mm
Slitting width 40-1000mm 40-1250mm
Slitting speed 0-60m/min; 0-90m/min; 0-150m/min;
Slitting width error ±0.1mm ±0.1mm
Slitting burr ≤0.02mm ≤0.02mm
Max. Slitting strips 10 12
Straightness deviation ≤0.2mm/m ≤0.2mm/m
Installing power 35kw/55kw/85kw 45kw/65kw/100kw
