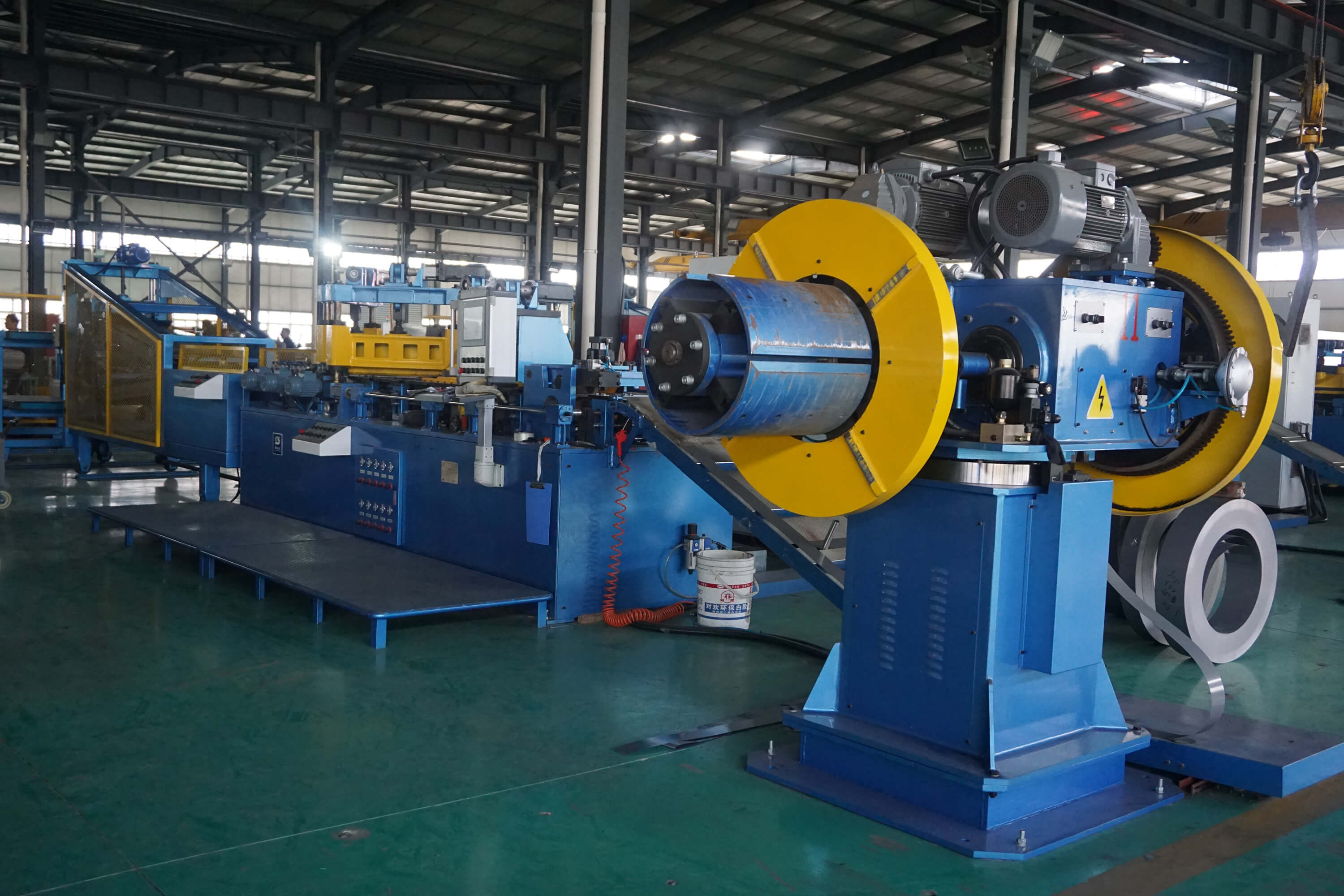

Silicon plate CNC cut to length line
Application
This equipment is dedicated machine for transformer steel core manufacture.
Features:
1. Adopting imported controller and AC servo control system.
2. Equipment is center location, width is adjusted automatically by computer.
3. Equipment can make step feeding automatically from 1 to 7 grade in horizontal and vertical direction.
4. All servo motor are imported servo motor in foil feeding , punching and shearing , guide , etc.
Equipment composition
1. Double head uncoiling machine
2. Buffering device
3. Feeding measure device
4. O- type punching
5. V- type punching
6. +45°Shearing machine
7. -45°Shearing machine
8. Material dividing and transporting device
9. Automatic material feeding device
10. Electric control system
Technical Parameters
Code SH-300 SH-400 SH-600 SH-900
Shearing width 40-300mm 40-440mm 60-640mm 90-920mm
Shearing length 300-2000mm 350-2500mm 400-3500mm 500-5000mm
Shearing thickness 0.20-0.35mm
Shearing length precision 士0.1mm
Slitting burr ≤0.02mm ≤0.02mm
Shearing angle precision 士0.025°
Slitting width error 士0.025°
Slitting burr ≤0.02mm ≤0.02mm
Max feeding speed 250 m / min 2 0 0 m / min
Sorting out method Automatic sorting out
Hold punching diameter According to requirement
Locating method Center locating
Installing capacity 25kw 30kw 35Kw 70kw
