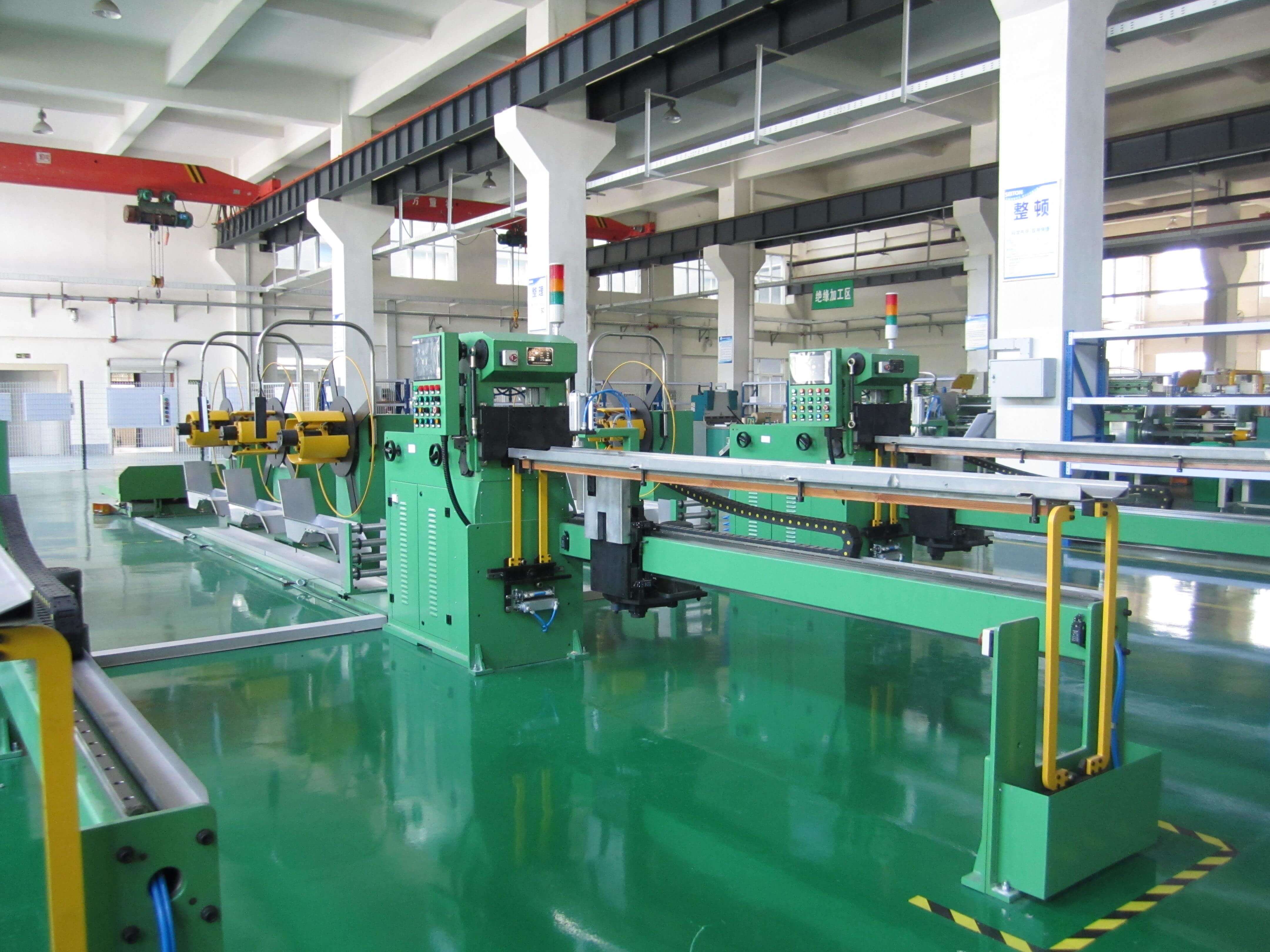

Amorphous Alloy Core Cutting Line
Application
It is used for automatic cutting and stacking of amorphous alloy transformer core.
Features
1. Adopting AC servo system for length setting and feeding, high precision.
2. Automatic sizing of uncoiling machine, convenient and efficient for material loading.
3. Adopting PLC touch screen, convenient to input plate shape parameters.
Equipment composition
1. Uncoiling machine
2. Coil material buffering device
3. Material feeding device
4. Cutting device
5. Automatic stacking device
6. Electric control
Technology parameters
Code SH-200
Shearing width 140-230mm
Feeding speed 60m/min
Shearing length 300-3000mm
Shearing length precision 士0.5mm
Shearing angle 90°
Shearing angle precision 士0.025
Shearing thickness Each layer 0.023mm, Max 15 layers
Stacking thickness 180mm
Stacking position error 士0.5mm
Length of the loading platform 2000mm
Coil outer diameter φ1100mm
Coil inner diameter φ400mm
