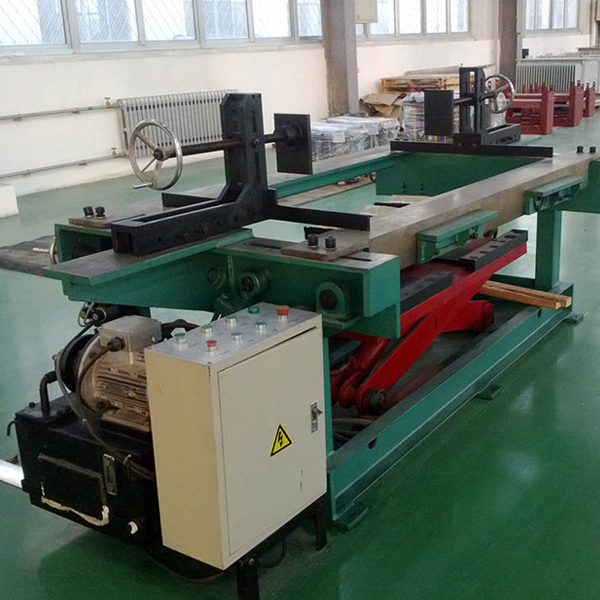

Amorphous transformer body assembly worktable
Application
This equipment is dedicated for amorphous alloy transformer body assembly. It is available for all types of oil and dry amorphous transformer assembly.
Features:
1. It changes traditional transformer body assembly art. Wire group is placed on the lifting table of assembly in advance. Axis of wire group is horizontal. Each single steel core inserts wire group inner hole horizontally。
2. Iron core close, wrapping and sealing, transformer body insulation assembly, clamping device fastening and other works are all finished in assembly worktable.
3. This assembly worktable height can be adjusted conveniently and meet with different types transformer assembly.
4. After assembly, transformer body can make 90°turning. It is lifted convenient, no deformation and safely.
Equipment composition
1 . Hydraulic lifting platform
2. Assembly platform
3. 90°turning device
4. Hydraulic station
5. Hydraulic car
6. Electric control cabinet
Technical Parameters
Code SH-3T SH-5T
Loading 3T 5T
Working height 850mm
Working stroke 500mm 600mm
Length: 700-1600mm
Transformer body size using Width: 200-900mm
Height: 200-900mm
Lifting speed(adjustable) V=40mm/s
Working pressure P=14MPa
