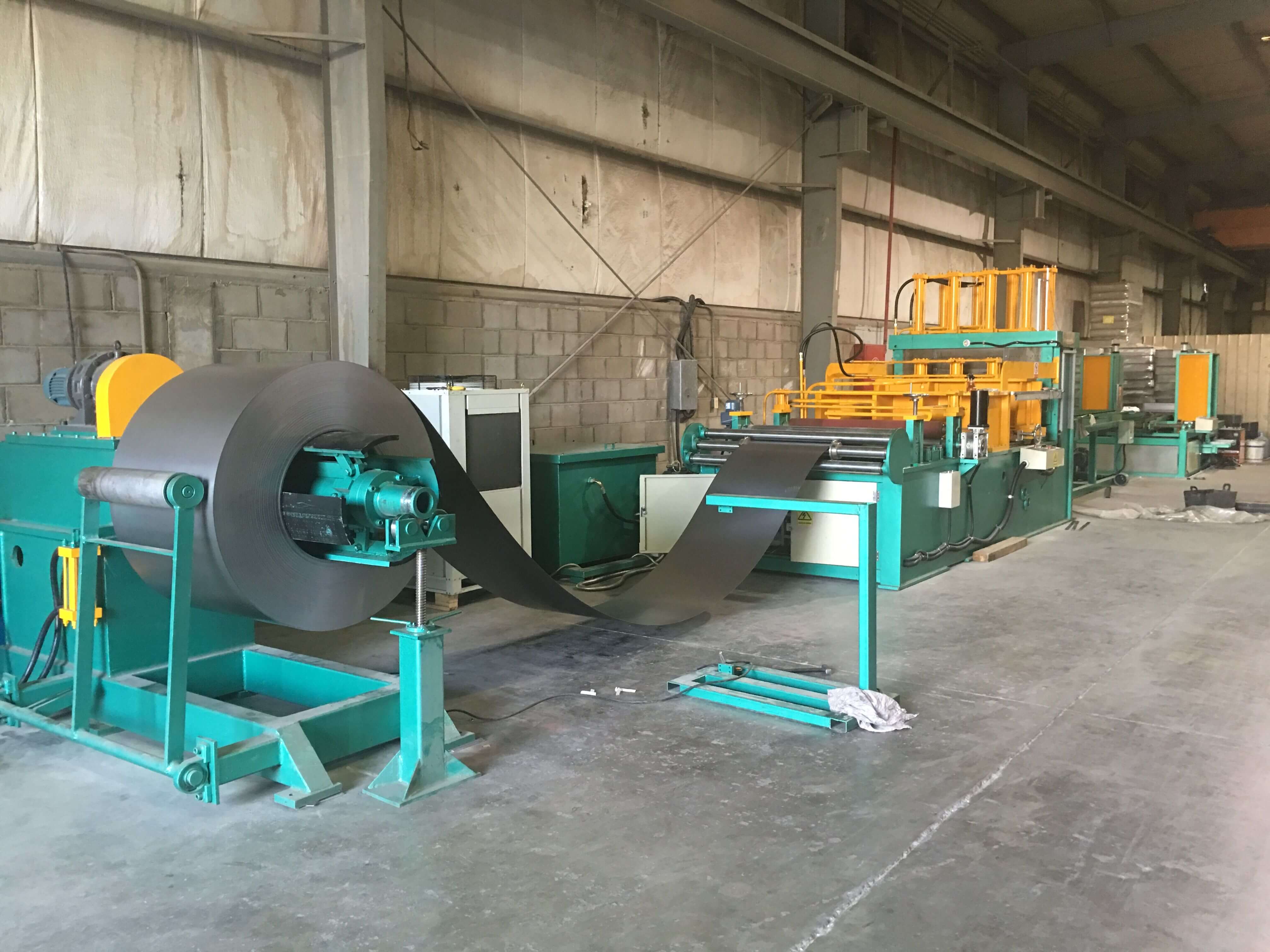

SH1300*400 Corrugated Fin Forming Machine
Features
1. Special machine for transformer fuel tank.
2. Include de-coiler, main machine, hydraulic station and electric control box etc.
3. It has reasonable structure and operation easily.
4. The hydraulic system is automatic controlled and running stable.
5. It may complete such as forming, shearing, bending etc process within one time when you put all operation parameters at screen.
Technology Parameters
Name Spec
Steel Thickness 1.0~1.5（mm）
Fin Length 300~2000（mm）
Fin Width 300~1300（mm）
Fin Height 40~400±0.2（mm）
Fin Pitch 42~80±0.2（mm）
Fin Pitch Tolerance ± 0.2（mm）
Working speed 3pcs/1min
Machine weight 11000kg
