Corrugated TankFin Welding Machine

Corrugated TankFin Welding Machine

Corrugated Tank/Fin Welding Machine

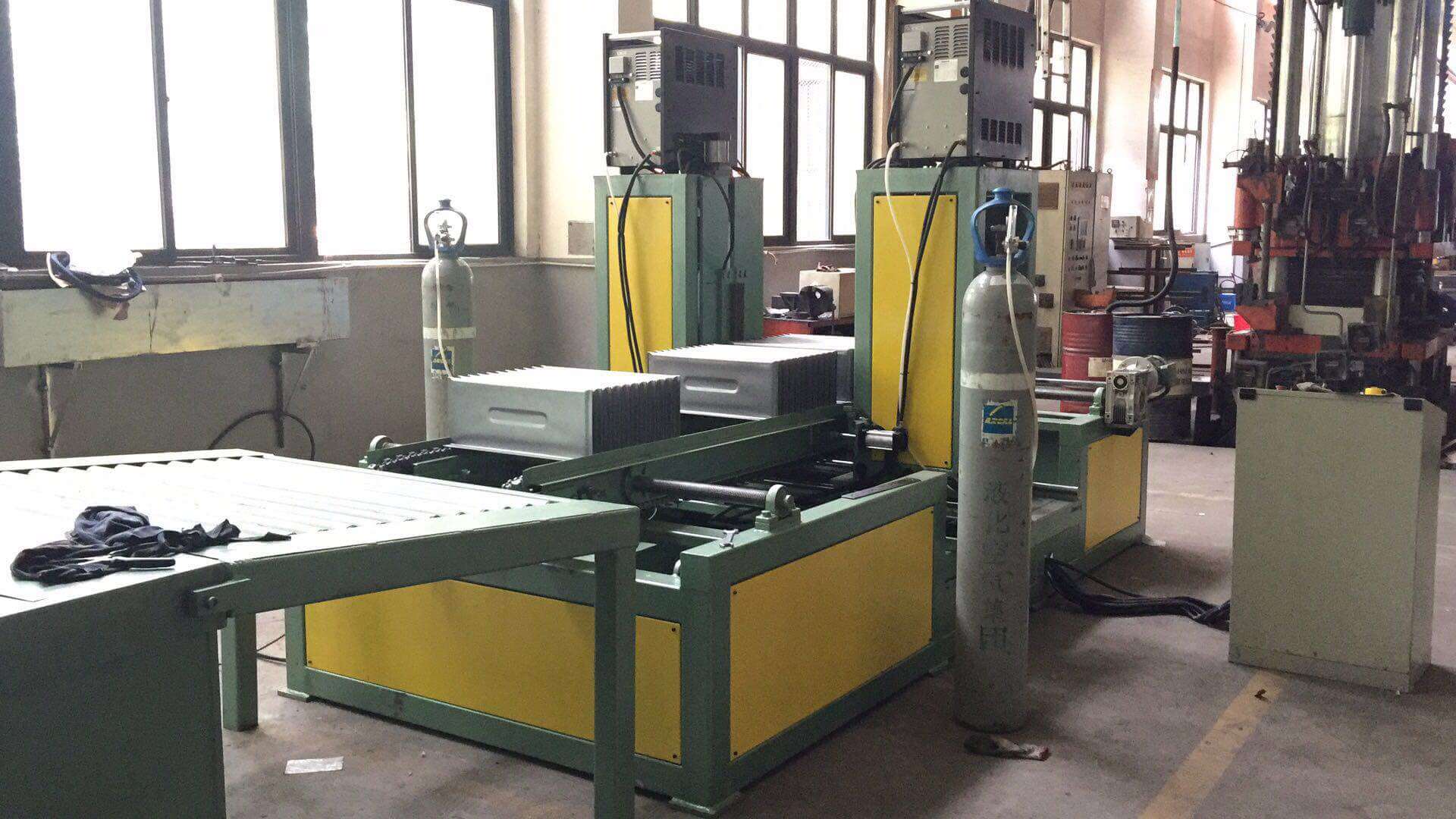

Corrugated fin automatic welding machine is kind of professional welding machine used in transformer manufacturing industry. Use air cylinder to clamp the fins, then welding gun move from top to bottom through ball screw driven by DC speed motor and weld the fins properly. Adopted air cylinder feeding, the machine can work continuously. The whole electric circuit is controlled by PLC system and the machine could run in fully automation mode.

Main features:

1) PLC control, full automatic, automatic conveying, automatic clamping, automatic welding

2) High welding speed, much quicker than manual welding

3) Argon arc welding, very tight welding result, very clean and smooth finished welding surface

4) Touch screen control, operate easily.

Technology parameters

Name Spec

Fin Width 100—1300mm±1mm

Fin Length 300—2000mm

Fin Thickness 1.0—1.5mm

Fin Height 50—400±1.0mm

Fin Pitch 45—80mm±0.20mm

Welding speed 2-3 fins/min

Machine weight 17000kg
